    Outside Horizontal Knee Type Load Break Disconnect Switch IEC Standard GW17-126

    Ask Lasest Price
    Brand Name : YONGDE
    Model Number : GW17-126
    Certification : ISO9001
    Price : negotiation
    Payment Terms : T/T or western Union or L/C or PayPal, MoneyGram, D/P, D/A
    Supply Ability : 1,000pcs per month
    Delivery Time : 21days per container
    • Product Details
    • Company Profile

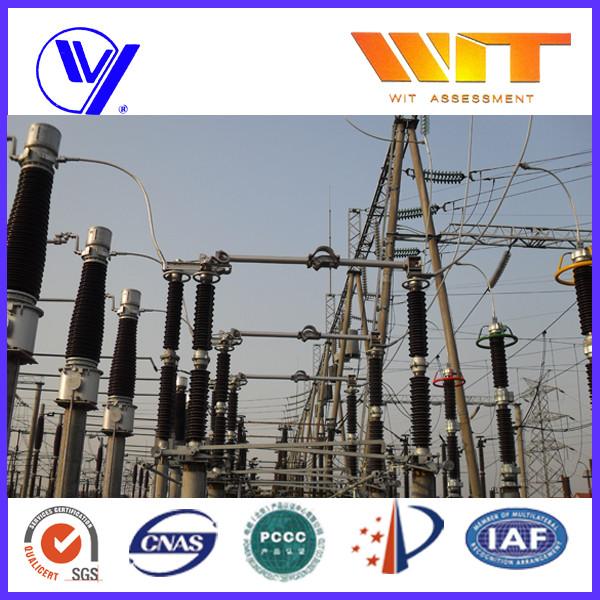

    Outside Horizontal Knee Type Load Break Disconnect Switch IEC Standard GW17-126

    Horizontal Type Knee-type Disconnector Switch GW17-126


    Description:


    GW17-126 Type Disconnector Switch is good for reducing the distance and station arranging, especially for outdoor station.


    Because of electric rod's self-rotation and switching structure and having self-locking function, it has strong property of motor performance resistance. Meanwhile, it can resist motor, wind pressure, earthquake and other outside power.


    Specifications:


    NoItemTechnical parameter
    1Rated Voltage kV72.5123145245
    2Rated Current A1250 1600 2000 2500 3150 4000
    3Rated Short Time withstand current and Time kA/s25~50/4
    4Rated Peak withstand current kA63~125
    51min power frequency withstand voltage (effective value) kVTo earth140230275460
    To phase140230275460
    Across Isolating DS180300315605
    6Lightning Impulse wishstand voltage
    (peak value) kV
    To earth3255506501050
    To phase3255506501050
    Across Isolating DS4056507501200
    7Rated mechanical terminal load NLevel of lateral load750150015002000
    Level of vertical load500100010001500
    Vertical750100010001250
    8Capacity and Inductive Ability (open and close)Capacity Current A1
    Inductive Current A0.5
    9Max Man Operative Moment N. m200
    10Motor Drive operating mechanism control voltage VAC220; DC110, 220
    11Motor Drive operating mechanism motor voltage VAC220, 380; DC110, 220

    Parameter5 (1).JPG
