    Safety Polymeric Transmission Line Surge Arrester With External Series Gaps

    Ask Lasest Price
    Brand Name : YONGDE
    Model Number : YH10CX-96
    Certification : ISO9001/KEMA
    Price : negotiation
    Payment Terms : T/T or western Union or L/C or PayPal
    Supply Ability : 15,000pcs per month
    Delivery Time : 21days per container
    • Product Details
    • Company Profile

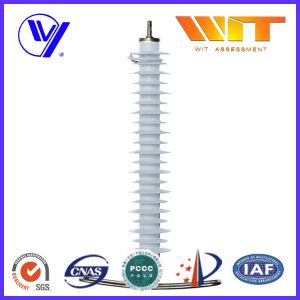

    Safety Polymeric Transmission Line Surge Arrester With External Series Gaps

    Safety Types of Lightning Arrester , Transmission Line Type Lightning Surge Arrestor


    Description:


    42-75kv Main features of Surge arrester with external series gaps (for transmission line protection)
    With smooth volt-second characteristic curve. Good insulation coordination and protective characteristics.
    The electrical frequency withstand voltage is high in discharging gap, high reliability, low allocated voltage, minimum aging phenomenon.
    Tube-like structure, injection hole to the side, overall injection molding polymer housed, no internal air gap, the core columns is encapsulated independently, with better air-proof performance than the other tubing products.
    The injection hole to the side with a pressure release function.
    The flow capacity of core component zinc oxide varistor reaches 100kA.
    Good anti-fatique behavior with Polymer Housed products and a CTI level of six. Creepage distance meets the requirements of III level heavy pollution.


    Applications:


    1. Distribution networks

    2. Transmission line

    3. Substation

    4. Railway power station

    5. Alternator and electromotor


    Specifications:


    TypeNominal System VoltageRated VoltageMinimum Reference Voltage under 1 mA DCResidual voltages at steep impulse currentResidual voltages at lightning impulse1.2/50 Impulse Discharge Voltage kV< =(+)Power Frequency Withstand Voltage4/10 μ S High Current (KA)2mS current /A
    5kA10kA5kA10kA
    YH5CX-42/12035426013812024082100400
    YH5CX-51/13435517315413424082100400
    YH10CX-51/13435517315413425082100500
    YH5CX-75/2186675108246218400147100400
    YH10CX-75/2186675108246246400147100500
